How do you optimally seal hangings and locks in the event of a fire?

In case of fire it is very important that parts such as lock cases, hinge leaves or other metal parts are covered with expanding materials. With the aim of optimally sealing seams and cracks so that oxygen has as little access as possible to the combustion process. Within our assortment of sets for hinges and locks you can find a suitable set for almost every lock or hinge.

Pack 1

  • 2 Lock plates (no pressure)  – dim. 165 x 70 x 0,8mm
  • 1 Strip intumescent tape 20cm length  – dim. 10 x 2mm – one-side adhesive
  • Suitable for Buva 6220 and 7220

Pack 2

  • 4 Side lock plates (no pressure) – dim. 115 x 40 x 0,8mm
  • 1 Strip intumescent tape 155cm length – dim. 10 x 2mm – one-side adhesive

Pack 3

  • 4 Hinge plates (pressurpressure build-up and moistureproof) – dim. 87 x 36 x 0,8mm

Pack 4

  • 2 Lock plates (no pressure) – dim. 115 x 77 x 0,8mm
  • 1 Strip intumescent tape 20cm length – dim. 10 x 2mm – one-side adhesive
  • Suitable for Buva 2000 and 3000 / Nemef 1200 and 4100

Pack 5

  • 2 Lock plates (no pressure)  – dim. 165 x 90 x 0,8mm
  • 1 Strip intumescent tape 33cm length – dim. 10 x 2mm – one-side adhesive
  • Suitable for:
      – BUVA 4100, 4200, 4300 and the 6500 serie / BUVA 6220, 7220
      – NEMEF 600, 4200 and 4400
      – LIPS serie 2400 and 2500

Pack 6

  • 3 Hinge plates (pressure build and moistureproof) – dim. 87 x 36 x 0,8mm

Pack 7

  • 4 Hinge plates (pressure build and moistureproof) – dim. 100 x 35 x 0,8mm – WITHOUT rounded corners

Pack 8

  • 2 Lock plates (no pressure) – dim. 115 x 77 x 0,8mm
  • 4 Hinge plates (pressure build and moistureproof) – dim. 87 x 36 x 0,8mm
  • Suitable for Buva 2000 and 3000 / Nemef 1200 and 4100

Pack 9

  • 2 Lock plates (no pressure)  – dim. 165 x 90 x 0,8mm
  • 4 Hinge plates Flextrem (pressure build and moistureproof) – dim. 87 x 36 x 0,8mm
  • Suitable for Buva, Nemef and Lips

Pack 10

  • 2 Lock plates (no pressure) – dim. 165 x 70 x 0,8mm
  • 4 Site lock plates (no pressure) – dim. 115 x 40 x 0,8mm
  • 1 Strip intumescent tape 20cm length – dim. 10 x 2mm – one-side adhesive
  • 1 Strip intumescent tape 155cm length – dim. 10 x 2mm – one-side adhesive
sets for hinges and locks

Pack 11

  • 4 Site lock plates (no pressure) – dim. 115 x 40 x 0,8mm
  • 2 Lock plates (no pressure) – dim. 205 x 83 x 0,8mm

Pack 12

  • 4 Site lock plates (no pressure) – dim. 115 x 40 x 0,8mm
  • 2 Lock plates (no pressure) – dim. 165 x 90 x 0,8mm
sets for hinges and locks

Pack 13

  • 2 Lock plates (no pressure) – dim. 198 x 100 x 0,8mm
  • 8 Hinge plates (pressure build and moistureproof) – dim. 87 x 36 x 0,8mm

Pack 14

  • 2 Lock plates (no pressure)  – dim. 165 x 90 x 0,8mm
  • 8 Hinge plates Flextrem (pressure build and moistureproof) – dim. 87 x 36 x 0,8mm

Pack 15

  • 2 Lock plates (no pressure) – dim. 115 x 77 x 0,8mm
  • 8 Hinge plates (pressure build and moistureproof) – dim. 87 x 36 x 0,8mm

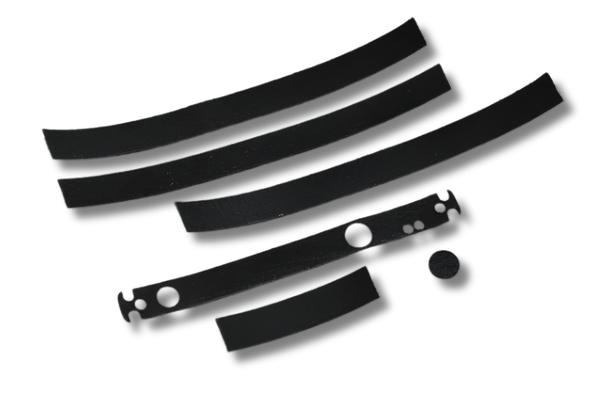

Pack 16

Dorma ITS 96 2-4 – pack for closer

  • 1 Strip – dim. 400 x 32 x 2mm – one-side adhesive
  • 2 Strip – dim. 400 x 35 x 2mm – one-side adhesive
  • 1 Strip – dim. 154 x 35 x 2mm – one-side adhesive
  • 1 Round – Ø 30 x 2mm – one-side adhesive
  • 1 Strip – dim. 340 x 32 x 1,5mm – one-side adhesive

Pack 17

  • 2 Lock plates – dim. 185 x 70 x 0,8mm
  • 1 Strip intumescent tape – dim. 200 x 10 x 2mm – one-side adhesive

Pack 19

Dorma ITS 96 3-6 – pack for closer

  • 1 Strip – dim. 400 x 32 x 2mm – one-side adhesive
  • 2 Strip – dim. 400 x 35 x 2mm – one-side adhesive
  • 1 Strip – dim. 154 x 35 x 2mm – one-side adhesive
  • 1 Round – Ø 30 x 2mm – one-side adhesive
  • 1 Strip – dim. 340 x 32 x 1,5mm – one-side adhesive
